High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel

Brand Name : SSTH

Model Number : M150W

Place of Origin : Guangdong, China

Packaging Details : Mono solar panel home
Product size: 1480*680*35mm
Carton size: 150*9.5*70cm
Number: 2pcs/carton
G.W.: 23KG/carton

Supply Ability : 2000000 Watt/Watts per Month

MOQ : 1000 watts

Price : CN¥2.56/watts 1000-99999 watts

Cell size : 156.75mmx156.75mm

Type : Glass, Mono 150w Solar Panel

Panel Dimensions : 1480*680*35mm

Panel Efficiency : 15.1%

Power : 150W

Max Power Voltage(Vm) : 18V

Frame : Anodized Aluminium Alloy

Cell Type : Mono 156*156mm

Cell number : 4*9

Back sheet : TPT

Junction Box : Pass the TUV Certificate

Application : Home solar power systems

Cable Connector type : Pass the TUV Certificate

Certificate : CE, TUV

Warranty : 25year

Port : Shenzhen, Shekou or Yantian

Contact Now

High Efficiency Solar Energy System 100w 150w 160w 200w 250w 300w 350w 500 Watt Mono Solar Panel

Products Description
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel

High efficiency mono Solar power panels 50w 100w 150w 160w 200w 250w 300w 350w 500 watt Power System Home mono solar cell panel

1. Multicrystalline modules designed for residential commercial andutility applications, rooftop or ground mount 2. Electric Current Classification. System output maximized by reducing mismatch losses upto 2% with modules sorted and package by amperage 3. Anti-reflective and self-cleaning surface reduces powerloss from dirt and dust 4. PID-Free. Module without potential induced degradation even underhigh temperature and high relative humidity condition. 5. Excellent mechanical load resistance:Certified to withstandhigh wind loads (2400Pa) and snow loads (5400Pa) 6. Passed Ammonia Gas and Salt Mist Corrosion Resistance TestTested and approved by TUV according IEC62716 Draft Cand FprEN 617o1 Ed.2
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
Specifications
Product name
150W mono solar panel
Type
Mono
Size
1480*680*35MM
Panel Efficiency
15.1%
Certificate
TUV
Warranty
25 YEARS
Solar cell
36(4*9)
Power
150W
Vmp
18V
Imp
8.28A
Voc
21.6V
Isc
8.95A
Maximum System Voltage
1000V
Cell Type
Mono156*156mm
Backing
TPT
Details Images
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
Our advantage
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

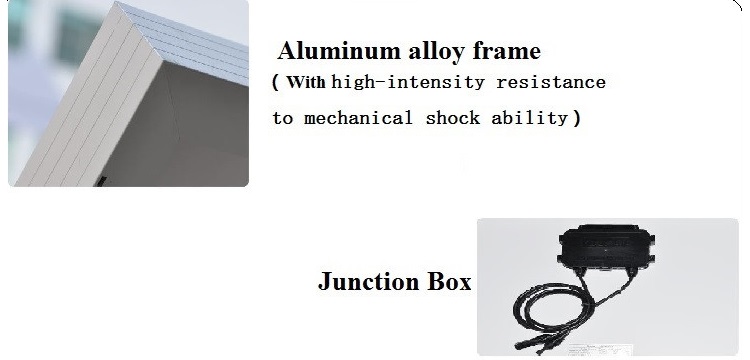

3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest
environmental conditions
5. Outstanding electrical performance under high temperature and low irradiance conditons
Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
Product packaging
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
Product type
Monocrystalline 150W solar panels
Product size
1480*680*35mm
Unit weight
10kg
PCS/Carton
2pcs
Carton size
150*9.5*70cm
Gross weight
23kg
High Efficiency Solar System Panel 100w To 500 Watt Mono Solar Panel
